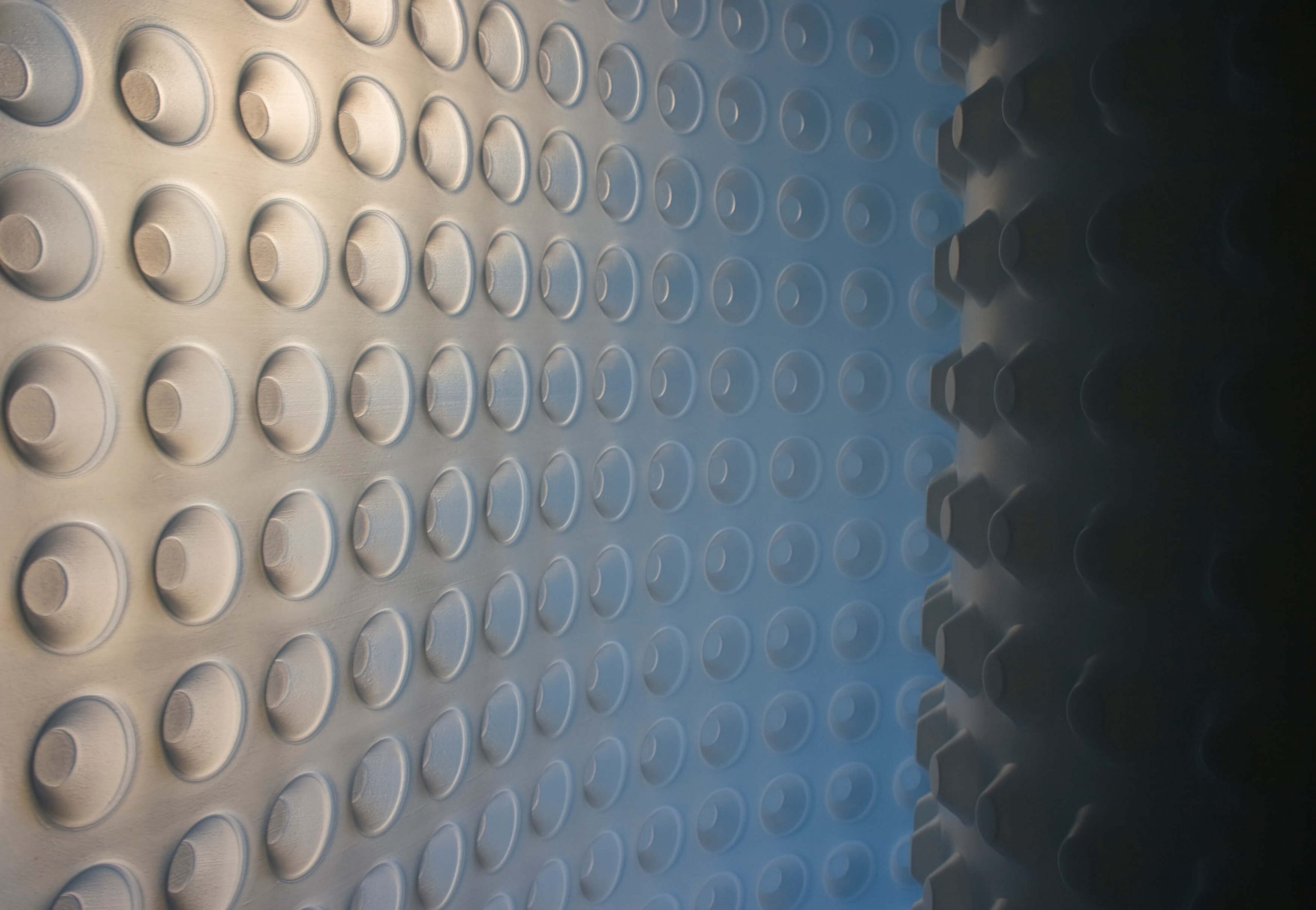

Newton 508 is a high quality cavity drain waterproofing membrane, which is supplied in a number of variants for use within Newton System 500, our internally applied waterproofing system that includes Newton drainage and pumping systems. Depending on the variant, Newton 508 is suitable for the waterproofing of earth retained walls, vaulted soffits and floors and is guaranteed against deterioration for 30 years, with a life expectancy of the design life of the building (DIN 9001:2000), and supported by BBA Certification Number 94/3010. Newton 508 is inert and, therefore, non-polluting to drinking water, highly resistant to water, alkalines, saline solutions and organic acids, and not affected by minerals and hydrocarbons. It is also rot-proof, and resistant to bacteria, fungi and other small organisms. Newton 508R and 508 eco Floor also both exhibit high compressive loading stability. Newton 508R and 508 eco Floor are also independently tested as an effective barrier to radon ground gases, with Newton 508R also tested as a methane and CO2 b d within our patented combined ground gas and waterproofing system, Newton PAC.

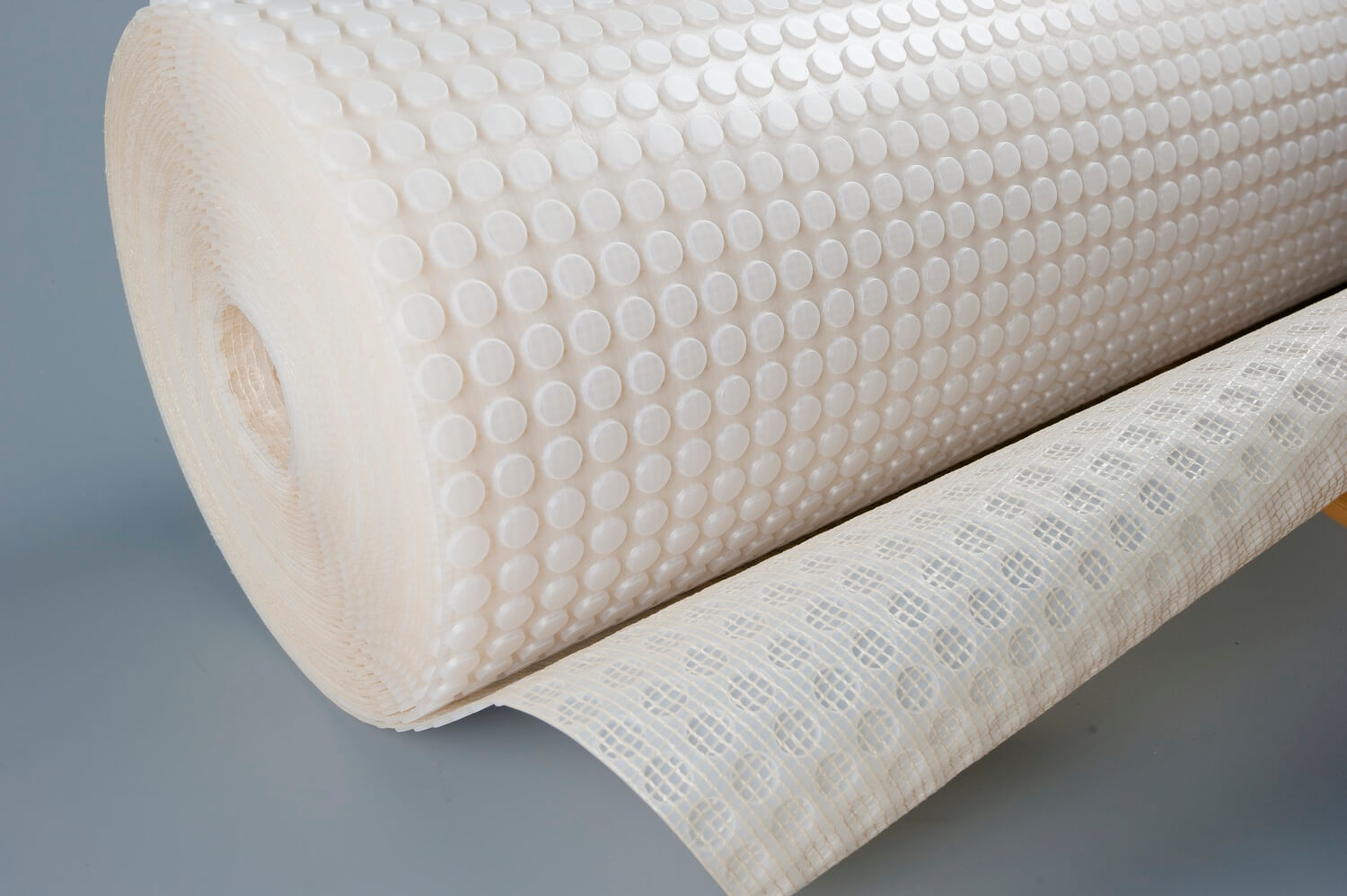

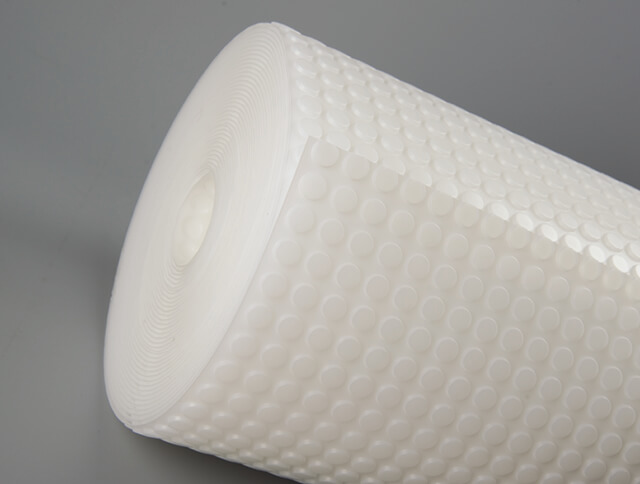

Newton 503 is a high quality cavity drain waterproofing membrane, supplied in a plain variant for walls and floors and a meshed variant for receiving plaster or render to walls, and used within Newton System 500, our internally applied waterproofing system that includes Newton drainage and pumping systems. Depending on the variant, Newton 503 is suitable for the waterproofing of earth retained walls, vaulted soffits and floors, is guaranteed against deterioration for 30 years, has a life expectancy of at least 50 years (DIN 9001:2000), and is supported by BBA Certification Number 94/3010.

Newton 503 is a high quality cavity drain waterproofing membrane, supplied in a plain variant for walls and floors and a meshed variant for receiving plaster or render to walls, and used within Newton System 500, our internally applied waterproofing system that includes Newton drainage and pumping systems. Depending on the variant, Newton 503 is suitable for the waterproofing of earth retained walls, vaulted soffits and floors, is guaranteed against deterioration for 30 years, has a life expectancy of at least 50 years (DIN 9001:2000), and is supported by BBA Certification Number 94/3010.

Newton 403 Hydrobond tape is a high performance double sided tape designed for sealing overlap joints of the Newton 403 Hydrobond Membrane. It provides a Type A (barrier) waterproofing solution to below ground and earth-retained structures.

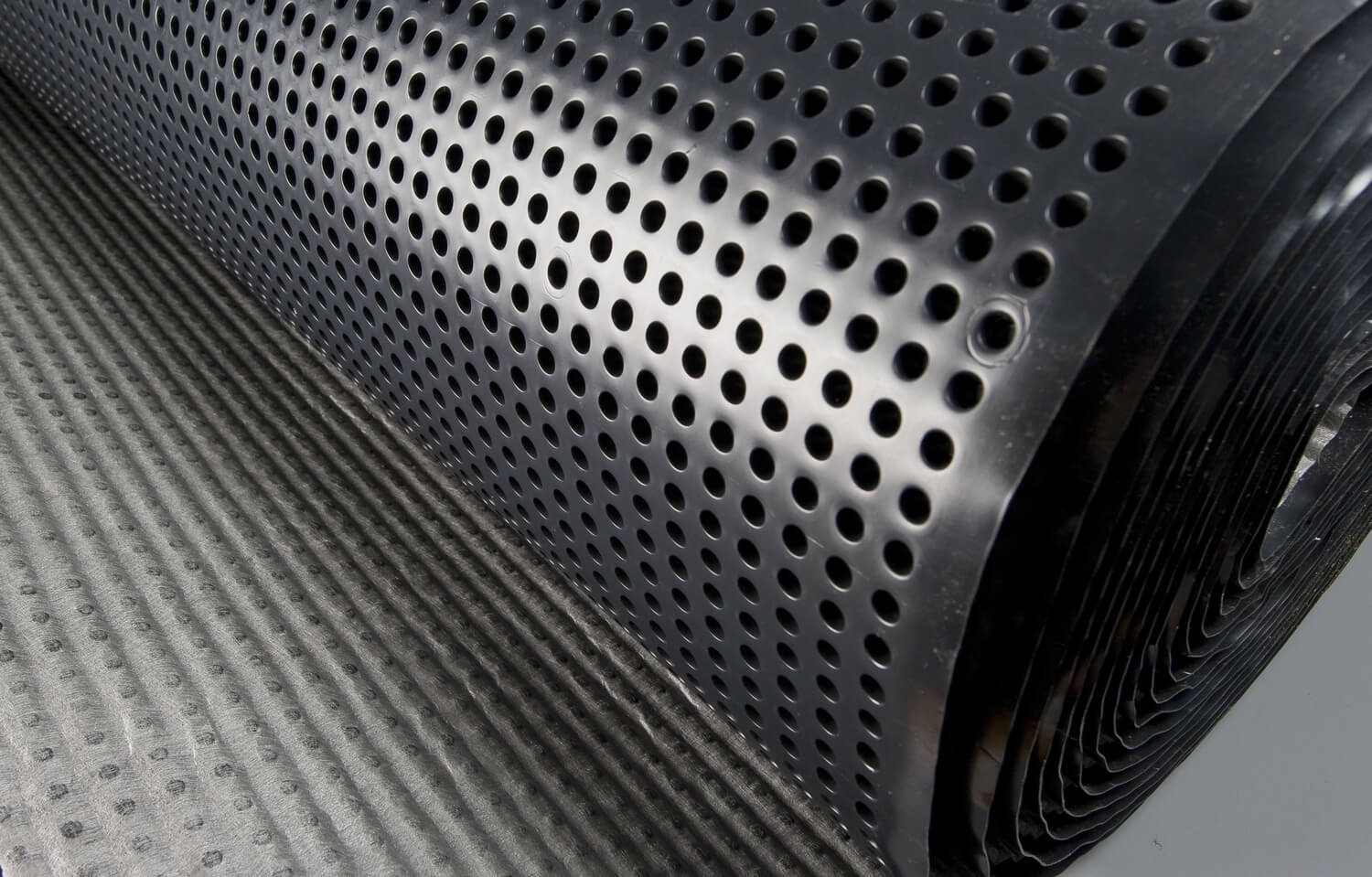

Newton 410 GeoDrain is a two-core drainage sheet consisting of a non-woven geotextile filter layer thermally welded to a water impermeable HDPE (High Density Polyethylene) drainage membrane. Newton 410 GeoDrain provides drainage and protection to the outside face of basement walls to sloping sites, preventing the build-up of water pressure and protecting the structure from aggressive water, chemicals and toxins, and provides mechanical protection only when used against the ‘Type A’ waterproofing where the site is not sloping and so where ground water removal is not viable or recommended.

Newton 410 GeoDrain is a two-core drainage sheet consisting of a non-woven geotextile filter layer thermally welded to a water impermeable HDPE (High Density Polyethylene) drainage membrane. Newton 410 GeoDrain provides drainage and protection to the outside face of basement walls to sloping sites, preventing the build-up of water pressure and protecting the structure from aggressive water, chemicals and toxins, and provides mechanical protection only when used against the ‘Type A’ waterproofing where the site is not sloping and so where ground water removal is not viable or recommended.

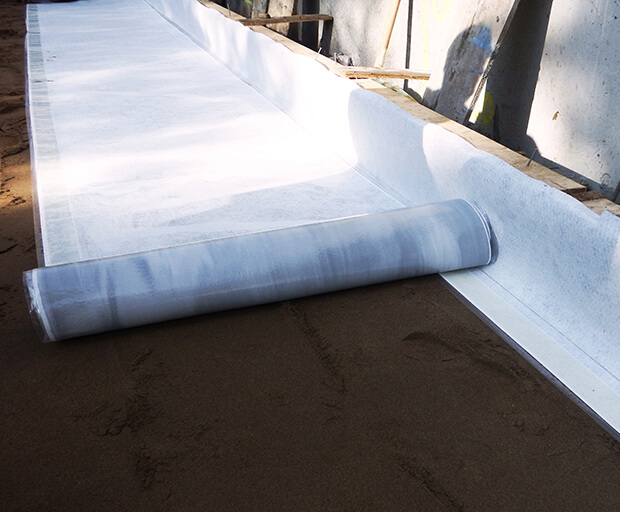

Newton 403 HydroBond® is a high performance, self-healing, composite sheet membrane, available in two variants, with Newton HydroBond-GB adding ground gas resistance (in compliance with BS 8485:2015) as well as the exceptional waterproofing capabilities of the standard membrane. When fitted above the raft support or to wall formwork, the membrane locking fleece is fully encapsulated into the newly placed concrete, becoming fully-engaged to prevent water tracking. If the waterproof LDPE layer is punctured, the exposed hydrophilic coating expands, preventing water ingress, effectively sealing small holes that may be accidentally formed during fixing of the reinforcing steel or the placing and compaction of the concrete. Newton 403 HydroBond provides a complete waterproof envelope to the structure to achieve Type A (barrier) waterproofing suitable for Grades 1, 2 and 3 as defined by BS 8102:2009, and is suitable for all below ground and earth-retained structures from domestic basements to the largest civil enginneering projects. Both variants can be used as part of the HydroBond® System in conjunction with Newton 108 HydroBond-LM, which is sprayed to the exposed walls of the basement after the temporary formwork is removed. Where space is tight, Newton 109-LM can be applied by roller or brush or small airless spray machine. Newton 403 HydroBond can be used alongside other Newton products to provide a co-ordinated and combined approach to the waterproofing of the whole structure that includes protection against water ingress to the deck, through construction joints, through and around service entries and to movement joints. Correctly protected, the Newton HydroBond System will provide, under normal service conditions, a durable waterproof barrier for the life of the building to which it is installed; the expected lifetime of the building itself should be at least 60 years. The Newton HydroBond system is supported by BDA Agrément Certificate BAB 17-031/04/A and is accepted by the NHBC as a suitable waterproofing system for Type A Waterproofing to Grades 1, 2 & 3 according to BS 8102:2009.
